O2 and Reactive Atmosphere Substrate Heaters

Model 101316, 1000°C O2 Sample Stub Heater

Al2O3 Body Precious metal element Reactive gas compatible Estimated operation: 18V, 6A @ 800°C 27V, 9A @ 1000°C

Model 101275, Button Style 1000°C O2 Heaters

Al2O3 Body, Precious metal element Reactive gas compatible Convenient mounting stem -22 can be used with #101251 Shield Assembly

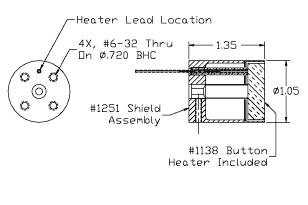

Model 101491 Heat Shield Assembly with Sample Clips

Comes with #101138-01 Button Heater (-02 with O2 heater) Adjustable sample holding clips Moly Rear and SST side heat shields Provides high thermal efficiency Temperature controllers available Also available for #101136(Ø.320) heater and #101137 (Ø.500) heater

Model 101446 2 inch Heater/Shield Assembly with Sample Clips

Comes with #101138-01 Button Heater (-02 with O2 heater) Adjustable sample holding clips Rear and side heat shields Provides high thermal efficiency Temperature controllers available Also available for #101136(Ø.320) heater and #101137 (Ø.500) heater

Model 101359, 900°C O2 Heater

SiC coated graphite element >1000 hours @ 900°C in 10 Torr O2 Integral heat shield Use with Model 101361 Temperature controller/Power supply

Model 101292, Cartridge Style O2 Heater

1000°C Rated in O2/Air Same sizes available as STD series UHV Heaters (Ø.134"-1.00") UHV compatible

Model 101400, 600°C O2 Custom Tensile Test Heater

Slot for tensile specimens Integral surrounding shield Convenient mount Ni-Cr-W-Mo, Alloy body Precious metal element Model 101169 (designed for 1200°C UHV) operation: 7V, 1.84A @ 1069°C 8V, 1.98A @ 1138°C 9V, 2.11A @ 1203°C

Model 101162, 1100°C O2 Custom Furnace

Independent three zone control 1.50" Long x Ø0.50" heat zone Precious metal element SST housing Use with Model 101303-07 controller

Model 101511 O2 Substrate Heater

1200°C O2 operation Up to Ø2" Substrate Precious metal heating element Exposed element for maximum sample temperature Available also with shield housing with sample holder and hold down clips (Model 101446) TC access to substrate See Model 101303-03 controller/power supply for programmable control

Model 101292, 3" x 3" 1000°C Custom O2 Heater

Custom enigineered to provide 300°C gradient across face Al2O3 body with precious metal element Sample mounting and TC features 0.50" thick Thermal/mechanical computer modeling and FEA available

Model 101496

LCD Processing panel heater SiC coated graphite panel 19.73" x 15.78" x .50" 220V input Profiled heater element for uniform temperature 600°C rated
