HeatWave Labs Model 101303 Temperature Control Centers

101303-21 9/18VAC, 15A Controller: Basic Unit

101303-21 controller/power supply

Single zone, phase angle fired, temperature contoller with power supply 110 VAC, 50-60 Hz power input, circuit breaker protection on input and fused output, Type K TC control input (compensating) Output voltage factory selectable to 9V or 18V with 15A output Unit to be shipped with 18V transformer setting Watlow 96 controller with programmable ramp software and internal, user-setable high temperature limit, soft start feature and fully heat sunk phase-angle fired SCR Preset to degrees C, Type K 5.25" high x 19" wide x 14" deep, rack mount Shipping Weight 20 lbs RELATED LINKS Complete Specifications HeatWave Labs Manual Watlow Series 96 Controller Manual Hook-Up Components, Hardware Thermocouples

101303-22 8/16/32 VAC, 94A Controller

Front View Rear View

Single zone, phase angle fired, temperature contoller with power supply 110 VAC, 50-60 Hz power input, circuit breaker protection on input and fused output, Type K TC control input (compensating) The following (Input Voltage)/(Output Voltage)/(Output Current) combinations can be configured via internal transformer tap settings: 120V/32V/47A, 120V/16V/94A, 120V/8V/94A, 240V/32V/47A, or 240V/16V/94A Unit to be shipped with 120V/16V/94A transformaer setting Watlow 96 controller with programmable ramp software and internal, user-setable high temperature limit, soft start feature and fully heat sunk phase-angle fired SCR Preset to degrees C, Type K 7" high x 19" wide x 14" deep, rack mount Shipping Weight 50 lbs RELATED LINKS HeatWave Labs Manual Watlow Series 96 Controller Manual Hook-Up Components, Hardware Thermocouples

101303-23 8/16/32 VAC, 94A Controller with High
TC and RS485 Interface

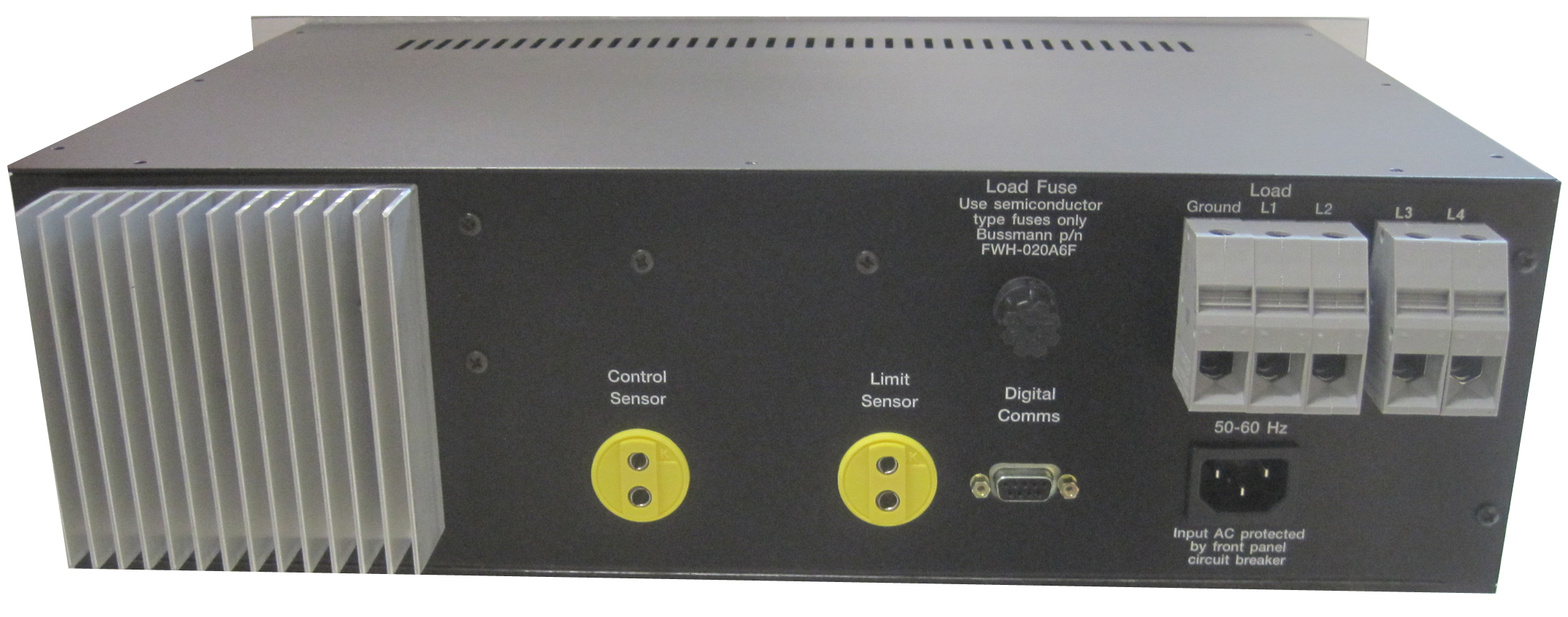

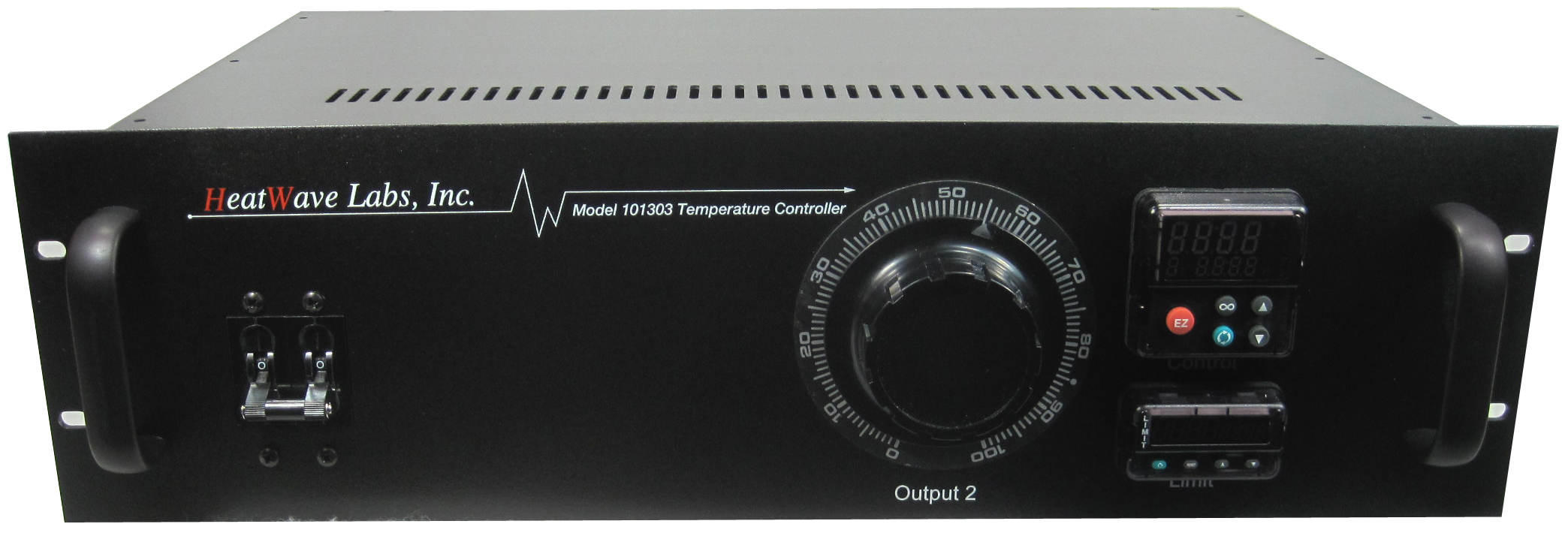

Front View Rear View

Single zone, phase angle fired, temperature contoller with power supply 110 VAC, 50-60 Hz power input, circuit breaker protection on input and fused output, Type K TC control input (compensating) The following (Input Voltage)/(Output Voltage)/(Output Current) combinations can be configured via internal transformer tap settings: 120V/32V/47A, 120V/16V/94A, 120V/8V/94A, 240V/32V/47A, or 240V/16V/94A Unit to be shipped with 120V/16V/94A transformaer setting Watlow 96 controller with programmable ramp software and internal, user-setable high temperature limit, soft start feature and fully heat sunk phase-angle fired SCR Includes separate temperature limit controller, thermocouple input RS-485 communications (connector on rear panel) included Preset to degrees C, Type K 7" high x 19" wide x 14" deep, rack mount Shipping Weight 50 lbs RELATED LINKS HeatWave Labs Manual Watlow Series 96 Controller Manual Hook-Up Components, Hardware Thermocouples

101303-01 20V/45A Controller

0-20 V, 0-45 A output, Programmable Low cost, Simple operation Fused input (10A), control (2A) and ultra fast SCR (40A). Dimensions: 19" Wide x 7" Tall x 13" Deep rack mount Weight: 60 pounds. (28 Kg). RELATED LINKS HeatWave Labs Manual Watlow Series 96 Controller Manual Hook-Up Components, Hardware Thermocouples Complete Specifications

101303-02 120V/10A Single zone controller/power supply

0-120V, 0-10A programmable temperature control Over-limit protection with alarm and bypass switch Type K control and high limit thermocouples RS-232 Interface 21" Wide, 9" Tall, 15" Deep benchtop Weight 20 lbs (9 Kg) RELATED LINKS 982 Series Manual Hook-Up Components, Hardware Thermocouples Complete Specifications

101303-03 20V/45A Controller Supply:

Shown with optional tote handle

0-20 V, 0-45 A output Fused input (10A), control (2A) and ultra fast SCR (40A). Over limit: Internal, user selectable (1250°C max) high limit shut off with front panel audible alarm and bypass switch. Type K high limit thermocouple input with compensating connector. RS-232 connector on back panel. Please inquire for optional PC or Mac Software. Dimensions: 19" Wide x 7" Tall x 13" Deep rack mount Optional bench top with tote/tilt handle Weight: 60 pounds. (28 Kg). RELATED LINKS 982 Series Manual Hook-Up Components, Hardware Thermocouples Complete Specifications

101303-04 30V/45A Controller/Supply:

0-30 V, 0-45 A output Fused input (10A), control (2A) and ultra fast SCR (40A). Over limit: Internal, user selectable (1250°C max) high limit shut off with front panel audible alarm and bypass switch. Type K high limit Thermocouple input with compensating connector. RS-232 connector on back panel. Please inquire for optional PC or Mac Software. Dimensions: 19" Wide x 7" Tall x 13" Deep rack mount Weight: 60 pounds (28 Kg) RELATED LINKS 982 Series Manual Hook-Up Components, Hardware Thermocouples Complete Specifications

101303-06/07 Multi-Zone Controller/Supply (Custom units):

Multi-Zone output Voltage or temperature control Independent zone control and monitoring RS-232 Interface, High limit protection, Custom features available RELATED LINKS 982 Series Manual Hook-Up Components, Hardware Thermocouples Complete Specifications
