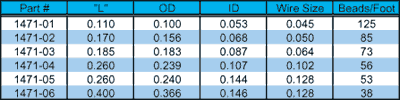

#101471 Fish Spine Beads

  • 95% Alumina
  • 450°C rating
  • See Data Sheet for detailed specifications

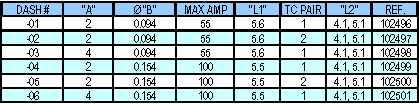

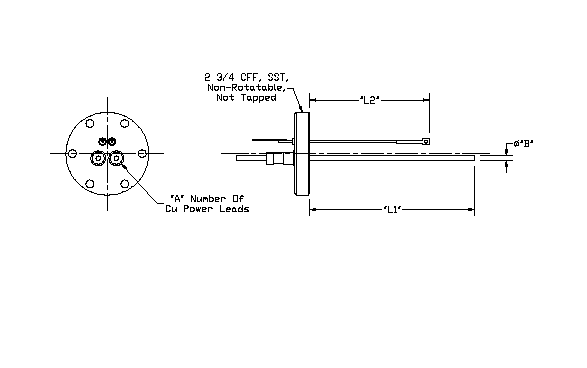

Model 102006 Power TC Feedthru On CFF Flange

  • 2 or 4 power leads
  • 1 or 2 Type K thermocouple pairs
  • Custom configurations available
  • See 101415 for copper gaskets


Customized Designs Available

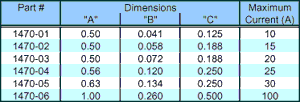

#101470 Inline Power Connection

  • BeCu construction
  • 400°C in vacuum, 150°C in air rating
  • 10 pieces per pack
  • See Data Sheet for detailed specifications

#101466 Push On Connectors

  • BeCu Construction
  • 200°C operation in vacuum, 150°C in air
  • See Data Sheet for detailed specifications

#101468 Angle Clamp

  • OFE Copper construction
  • SST SHC screw included
  • Vented screws available
  • See Data Sheet for detailed specifications

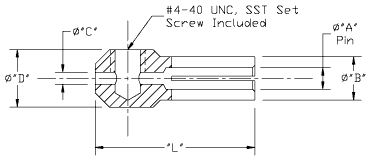

#101467 Inline Clamp

  • OFE Copper construction
  • SST SHC screw included
  • Vented screws available
  • Available for Ø1/8" rod also
  • See Data Sheet for detailed specifications

Miscellaneous Hardware

  • Thermoshield Threaded Rod, Wound Wire Screws, Screws, Nuts, Washers, etc. See TB-187 for detailed specifications
  • Tungsten See TB-187 for detailed specifications
  • Moly See TB-187 for detailed specifications
  • SST
  • Tantalum See TB-187 for detailed specifications
  • Ceramic (Alumina, Zirconia) See TB-206 for detailed specifications
  • SAE and Metric Sizes (0-80 thru 3/4" and metric #1 thru #6)
  • Available in most sizes from stock Thermoshield

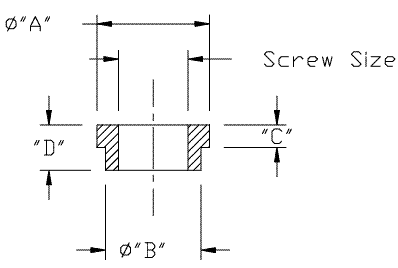

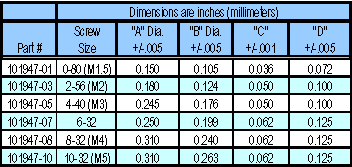

#101947 Alumina Hat Washers and Alumina Shoulder Washers

  • 98% Pure Alumina
  • Non-porous,vacuum compatible
  • "Heavy duty" furnace shoulder washers also available - contact Factory

Vented Screws

  • SAE or Metric sizes (2-56 thru 3/4" and #1 thru #6)
  • Available in most sizes from stock
  • Vented to allow UHV operation without virtual leaks
  • Plated units available

Plated Hardware

  • Gold
  • Silver
  • Nickel
  • MoS2 (Molybdenum Disulfide)
  • WS2 (Tungsten Disulfide)

Ceramic Screws

  • A998 Alumina, Zirconia
  • #0-80 and Up (Metric also)
  • Hex, Slotted, Socket, Countersunk Heads
  • Nuts and Washers
  • See TB-206 for detailed specifications

    • Custom Shapes

    • Molybdenum
    • Tungsten
    • Tantalum
    • SST
    • Ceramics
    • Foam Metals
    • W/Cu, Mo/Cu composites as well as others

    #101415 Copper Gaskets

    • Standard Conflat sizes
    • Gold plated gaskets available
    • For Gold plated order as 1415-XXAU
    Complete specifications

    #101469 Alumina Spacers

    • 95% Alumina
    • 450°C temperature rating
    Complete specifications

    #101383 Ceramic Standoffs

    • 400°C bakeable
    • UHV compatible glazed ceramics
    • SST screws and washers included
    • Vented screws also available
    Complete specifications

    Model 101479 Sample Holding Clips
    • Use with standard UHV button heaters
    • UHV and/or O2 compatible materials
    • Thin wall for low heat loss
    • Point contact on samples
    • Excellent for holding samples against heater face


    Pending Specifications

    Model 101028 Sample Holding Caps
    • Use with standard UHV button heaters
    • Tantalum construction
    • Thin wall for low heat loss
    • Bendable tabs to secure cap onto heater
    • Excellent for holding sample disks against heater face


    Complete Specifications

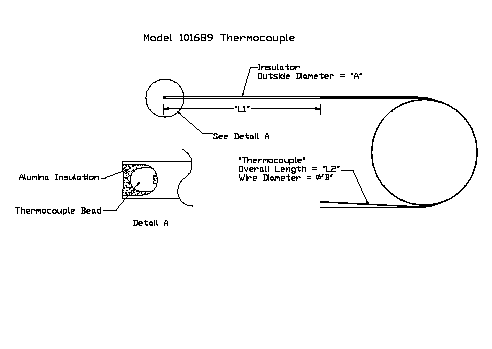

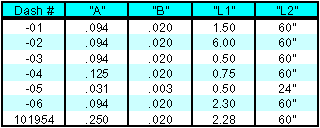

    Model 101689 and 101954 Thermocouples

    Grids
    • Planar and formed shapes available
    • Etched and Woven Mesh Grids
    • Materials include Molybdenum, Tungsten, Hafnium and Copper
    • Non Emissive Materials and Coatings
    • Stock Moly Materials of various transparencies
    • See TB-172 for detailed specifications
